Certdog - Workflows

From version 1.17

Workflows operate on a Trigger, Filter, Action process. Some event (such as a certificate request) will trigger a workflow, the filter will then decide if the action should be carried out (such as the request was from a specific team) and if the filter passes, the action is carried out

Triggers can be:

  • Certificate Requested

  • Certificate Revocation Requested

  • Certificate Issued

  • Certificate Revoked

  • Certificate Imported

  • Certificate Deleted

  • Certificate Expiring

Any of these operations carried out by a user/system will trigger all workflows listening for that particular trigger

There is a Priority that can be assigned to triggers - thus, if several Workflows will be triggered, they will be executed in order of priority - the highest priority being run first (e.g. a Priority of 100 runs before a Priority of 90)


Filters can be on the requested (or issued certificate) DN or matched on Teams, Issuers or Users. Every item in the filters must match for the trigger to be actioned. For example, if set to filter on Team is Middleware and Issuer is TLS Certificates, then the request must be from a user in the Middleware team, requesting a certificate from the TLS Certificates Issuer. In other words filters use the AND operator (not the OR)


Actions can be any of the following:

  • Obtain Approval

    Approval must be obtained from another user, an Administrator or a member from another team

  • Run Script

    A script (PowerShell or Shell/Bash) can be run and provided with parameters from the request e.g. the certificate subject

    There is an option to Use as Approval. When this is checked, this enables automated approval based on the output from script. If the script returns 0, the request will proceed, otherwise it will be reject

  • Send Email

    An email can be sent. These can be sent to the owner or specified email addresses containing relevant information

  • Trigger Webhook

    A webhook can be called. This can be used to send notifications to systems such as Microsoft Teams or JIRA etc


Configuration

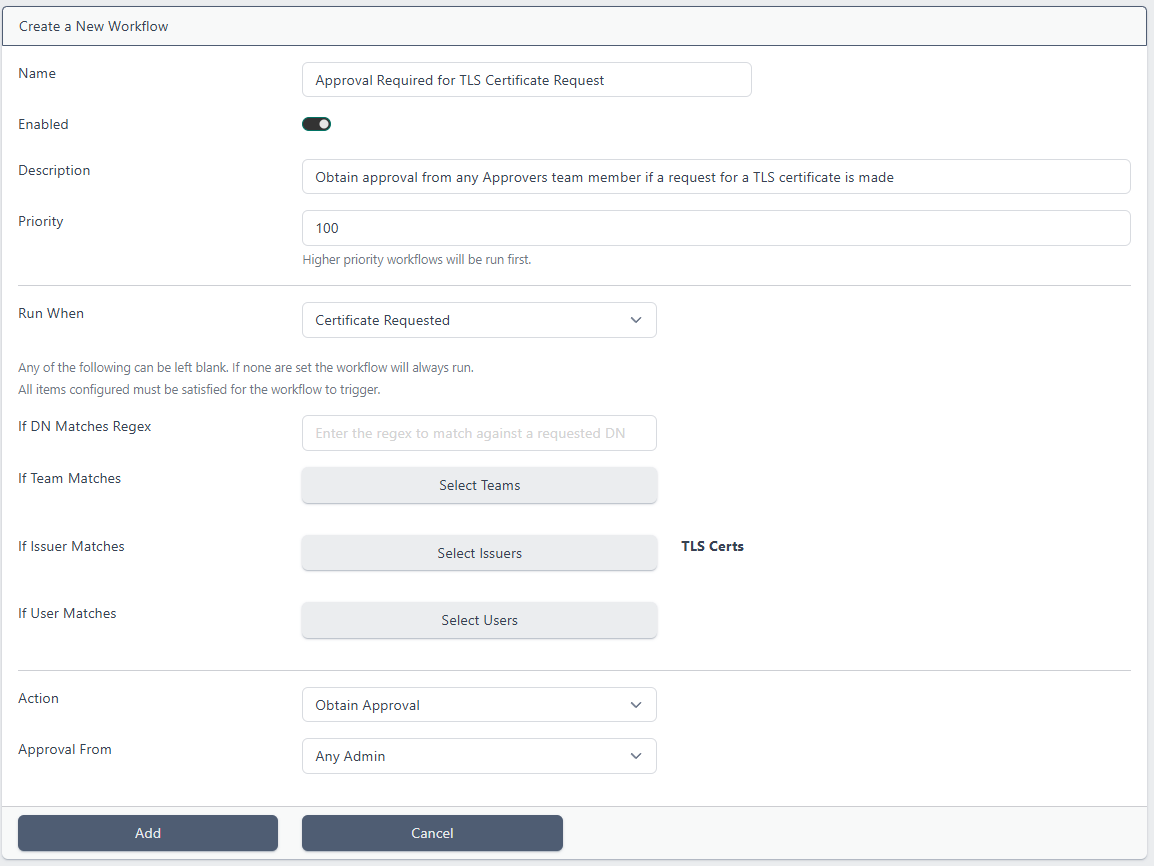

Click the Workflows menu under the ADMINISTRATION section and click Add New Workflow:

image-20260528142004509

Enter a Name for the workflow and optionally a Description

If you expect multiple workflows to match the same criteria (and so will be run together) and you care about the order, set the Priority. A higher value (e.g. 10) will run before a lower priority (e.g. 1)

Choose when the workflow should run. The options are:

  • Certificate Requested

    Triggered whenever a certificate is requested. Via any interface (UI, REST API, ACME, SCEP etc.) and any mechanism (CSR or providing a DN)

  • Certificate Revocation Requested

    Triggered whenever a revocation request is placed via any interface

  • Certificate Issued

    Triggered after a certificate has been issued

  • Certificate Revoked

    Triggered after a certificate has been revoked

  • Certificate Imported

    Triggered after a certificate has been imported

  • Certificate Deleted

    Triggered after a certificate has been deleted

  • Certificate Expiring

    Triggered when a certificate is expiring within the set number of days

Next choose any criteria that must be satisfied for this workflow to be triggered. If none are selected then the Workflow will always be triggered. If multiple options are selected (e.g. If Team Matches and If User Matches are set) then if both are true, the Workflow will be triggered

The following options are available here:

  • If DN Matches Regex

    Enter a regular expression that will match against a DN. See the section at the end of this page for samples of regular expressions

  • If Team Matches

    Click Select Teams and select one or more teams. If a user in any of these teams makes the request, the Workflow will activate

  • If Issuer Matches

    Click Select Issuers and select one or more Certificate Issuers. If a request is made from one of these Certificate Issuers, the Workflow will activate

  • If User Matches

    Click Select Users and select one or more Users. If a request is made from any of these Users, the Workflow will activate

  • If Expires in Days

    • This option is only available if Certificate Expiring is the selected trigger
    • One or a series of number of days before expiry can be specified. E.g. if set to 5 days, any certificates that are expiring in 5 days will match the criteria

Next, select the action if any of the configured matches apply. The options are:

  • Obtain Approval

    Obtain approval from another user. This option is available for the Certificate Requested and Certificate Revocation Requested triggers

  • Run Script

    Run a script. This can also perform auto-approval

  • Send Email

    Send an email (to the owner and other specified email addresses)

  • Trigger Webhook

    Execute a webhook to create a Microsoft Teams message or call another API (such as creating a ticket within JIRA)

These are each discussed further below


Obtain Approval

image-20260611131407430

When Obtain Approval is selected, the Approval From options are:

  • Any Admin
    • If this option is chosen, any Administrator will be able to approve the request
  • User
    • Click Select Users and select one or more Users who can approve the request
  • Team
    • Click Select Teams and select one or more Teams, members of which can then approve the request

Note: That that the same user cannot approve their own requests, even if they meet the approval criteria. For example if an Administrator makes a request and approval is set to be from Any Administrator, another Administrator must still approve

Approvers will be sent an email asking for their approval. Your approval requests and requests you are able to approve are available from the Approvals menu


Run Script

If Run Script is selected, you can select the pre-loaded script to execute. Scripts are configured via the Scripts menu. For more details see here

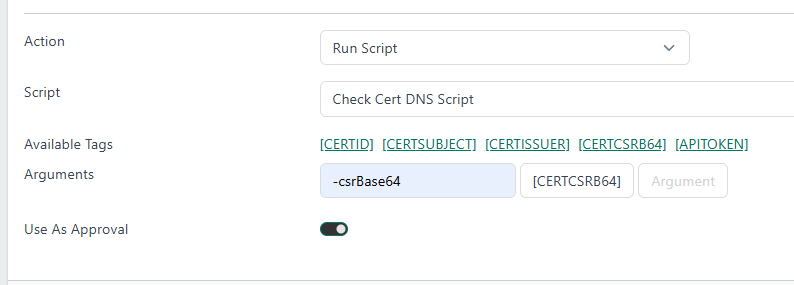

image-20260611131526511

Choose the script from the Script dropdown

For Arguments, select from the Available Tags (clicking will copy to the clipboard) and paste into the Arguments list. See parameters for more details on the available tags. Tags are substituted for the actual values when processing. For example, [CERTSUBJECT] will be substituted for the subject of certificate being processed e.g. CN=cert1,O=org,C=gb

These values will be passed directly to the script in the order they are specified

For example, if our PowerShell script accepted the following parameters:

param (
    [Parameter(Mandatory = $true]
    [string]$certId,
    [Parameter(Mandatory = $true]
    [string]$certSubject,
    [Parameter(Mandatory = $true]
    [string]$caller
)

They could be passed in the correct order. e.g.

image-20260611132812159

Or the parameter names could also be specified, in which case the order would not matter e.g.

image-20260611132910179


The script can also act as an approval step. To enable this select the Use As Approval switch. If the script returns 0, then the request will be approved. If the script returns any other value, it will be denied.

An example use could be as follows: A script accepts the [CERTCSRB64] data. The script parses the CSR data extracting the requested SANs. For each SAN, it then checks in DNS that the requested FQDN is registered. If all are registered the script returns 0, otherwise 1. When run as an approval, if the request is for a server that is registered and known, then it is permitted, otherwise it is denied


Send Email

When Send Email is selected an email will be sent. Additional email addresses can be provided as well as the [OWNEREMAIL] parameter

The email subject and body can also include parameters such as [CERTSUBJECT]. The available parameters will depend on what trigger has been hit. E.g. if the trigger is Certificate Requested, there will be no [SERIALNUM], [CERTURL] etc. But if the trigger is Certificate Expiring these will be available


Trigger Webhook

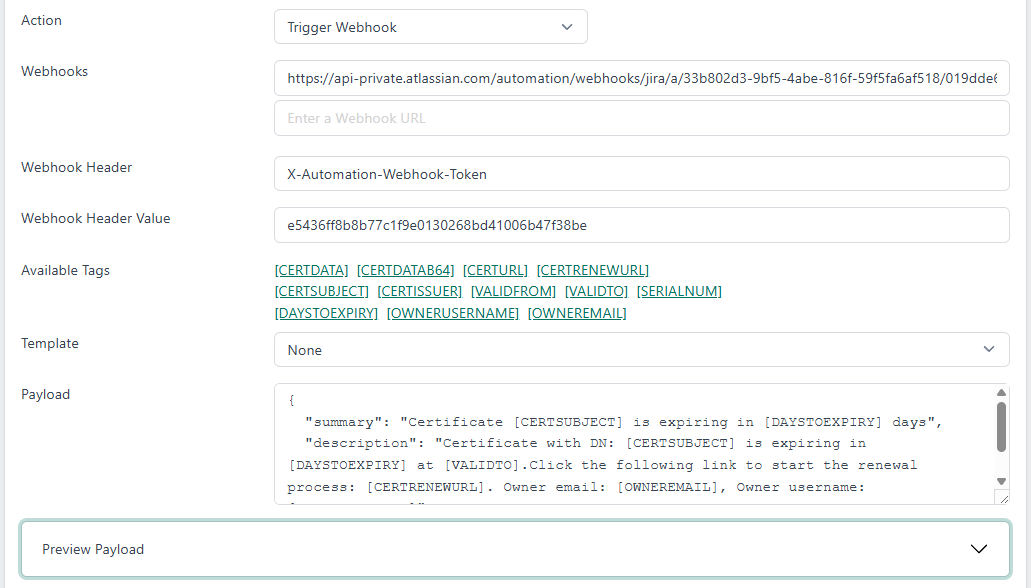

Selecting Trigger Webhook will allow for a a webhook URL to be specified together with a payload

image-20260611145525290

Enter the Webhook URL. Multiple URLs can be provided if required

If any headers are required (e.g. for authentication) add the header name to the Webhook Header section

And add the header value to the Webhook Header Value section

For Template, select from:

  • None

    The payload will not be surrounded by any additional elements. If the webhook requires JSON formatted data, the full JSON should be provided in the payload section

  • Plain Microsoft Teams Message

    The payload will be surrounded with a Teams message payload. Only the text you want to be sent to the Teams channel needs to be specified

    E.g. Certificate [CERTSUBJECT] has been requested. This would result in the full payload being (available to view from the Preview Payload section):

    {
  "type": "message",
  "attachments": [
    {
      "contentType": "application/vnd.microsoft.card.adaptive",
      "content": {
        "type": "AdaptiveCard",
        "$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
        "version": "1.0",
        "body": [
          {
            "type": "TextBlock",
            "wrap": true,
            "text": "Certificate [CERTSUBJECT] has been requested"
          }
        ]
      }
    }
  ]
}

  • Microsoft Teams Adaptive Card

    You can develop complex cards to be posted in Teams channels. The Microsoft provided Adaptive Cards Designer can be used to create these. The output (displayed in the CARD PAYLOAD EDITOR section) can then be copied and pasted into the payload section

    Note: Teams only supports adaptive cards up to version 1.4. The adaptive card designer will generate version 1.6 cards. This can normally be rectified by simply replacing the version from 1.6 to 1.4. Just be aware if any 1.6 features are used (such as Charts and Carousels) they will not work in Team

Once all fields are complete click Add

image-20240524161204962

The new Workflow will now appear in the Workflows list.

To make changes, click the Workflow and choose View/Edit.


In the Payload section, enter the data to be sent to the webhook end point. The format of this will depend on the Template selected above

To view the final payload (the data that will be sent to the end point), click Preview Payload



Approvals

All Approvals are available from the Approvals menu item. This section shows

  • My Requests

    • Requests that you have made and their approval status (Awaiting Approval, Approved or Denied)

  • Requests I Can Approve

    • This list shows all requests that you are permitted to approve


Requestors

When a user makes a request that is caught by a Workflow, they will be presented with a message such as:

image-20240524161437047

And they will be taken to the Approvals section:

image-20240524161543604

Clicking on an item in the list will show the approval details, including who it needs approval from:

image-20240524161634504

When this request is approved the Approval Status will change to Approved and the details will show the approver’s username and approval time. The requesting user will also receive an email informing them that their request has been approved.

If the request is denied, the status will show Denied and the request will show relevant details.


Approvers

From the Approvals menu item, under the Requests I Can Approve section will show the requests awaiting your approval.

Click on an item to obtain more details about the request:

image-20240524162324478

Click Approve or Reject.

If Reject is chosen there is the option to enter a reason:

image-20240524162431997

The requesting user will receive an email indicating whether the request was accepted or not. In the My Requests list of the Approvals section, the request will be updated with the new status. Clicking on the item will show more details:

image-20240524162555810


Matching DNs with Regular Expressions

You may activate a workflow when a request DN matches a regular expression

If you wanted to match an exact DN, simply enter that text. However, note this will not catch any variations such as spaces or case

To capture a DN that includes a specific string (e.g. domain name), case insensitive, you could use:

(?i).*krestfield.com.*

This would then capture requested DNs such as:

CN=server1.krestfield.com,O=Krestfield,C=GB

But would not capture:

CN=server1,O=Krestfield,C=GB

etc.

By utilising regular expressions it is possible to capture more complex variations
