EzSign Service Guide

Introduction

The Krestfield EzSign Service is a Windows Service that enables the management of multiple EzSign Server instances on the following Windows Server operating systems:

• Windows Server 2016
• Windows Server 2019
• Windows Server 2025

Prerequisites

• .NET Framework 4.8.1 or later
• Optional: Java 8u241 or later. A Java runtime is bundled with the installer, but alternative Java installations may be used

Updates from Previous Version

EzSign Service Installer v1.5 now includes:

• EzSign v4.5.1
• Java JDK 26

No additional components are required except the .NET runtime. Alternative EzSign or Java installations may still be used if preferred

Installation

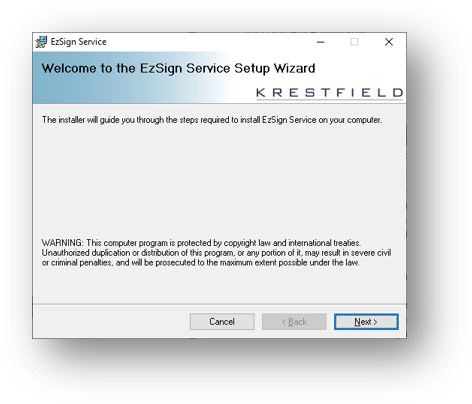

Run EzSignServiceInstallerV1.5.msi as an Administrator

Click Next

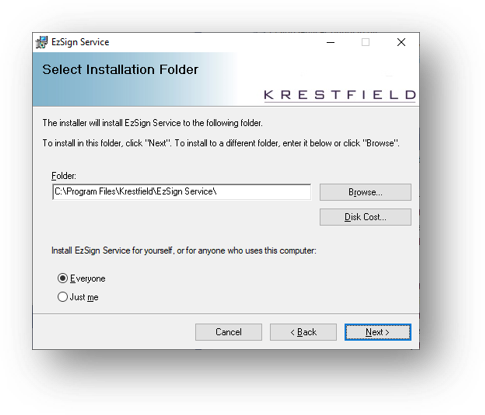

You will be guided through the installation steps, including selecting the installation directory. By default, EzSign Service installs to:

C:\Program Files\Krestfield\EzSign Service\

EzSign components are installed under:

[Install Location]\EzSign

Management scripts are located at:

[Install Location]\EzSign\EzSignServer\bin

After completing the wizard, the following components will be installed:

• EzSign Service Config (management utility)
• Krestfield EzSign Service (Windows Service)

Using Previous Settings

To make use of any previous configurations, ensure that you copy across the Service settings from here:

 C:\Program Data\Krestfield\EzSignService\ezsignservice.properties

As well as the previous EzSign server configuration files (.properties files) and key store contents

If using an HSM, this must be configured as per previous instances and if any keys are stored on the HSM they must still be available to the EzSign instances. For nCipher Security World’s this will involve copying the remote file system from any old locations/servers to the new

If you have customised the logging, either replace, or update the log configuration file here:

[Installation Directory]\EzSign\EzSignServer\logconf\log4j2.xml

Configuration

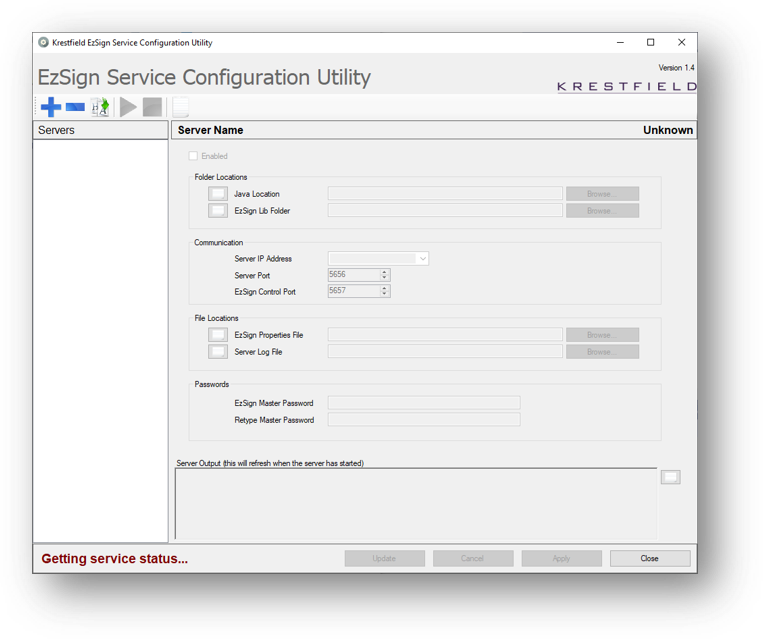

Launch EzSign Service Config from the Start Menu or desktop shortcut

The utility displays existing server configurations and allows you to add, edit, rename, or delete EzSign Server instances

Adding a New Server

1. Click Add Server.

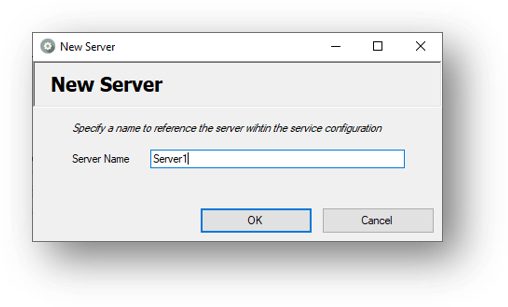

2. Enter a descriptive server name and click OK

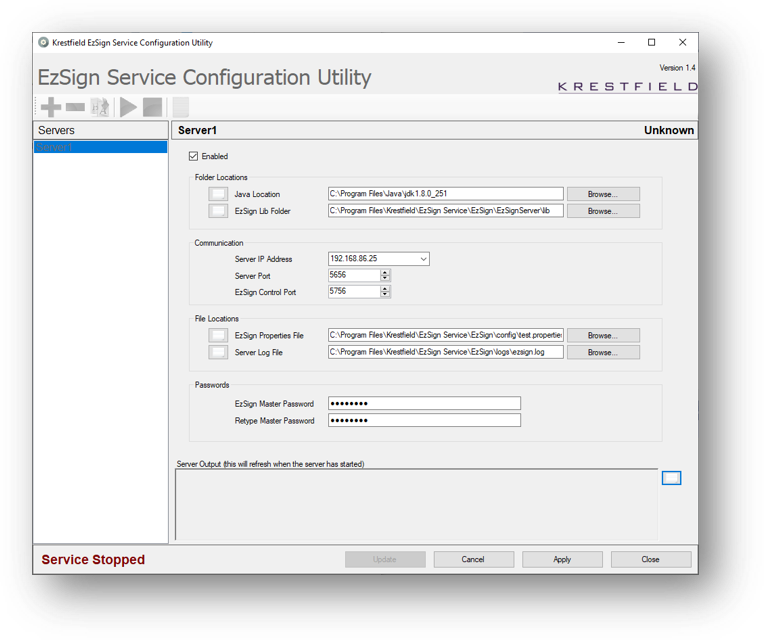

3. Populate the required configuration fields



Configuration Fields

• Enabled
  • If checked, the server will start automatically when the EzSign Service starts

• Java Location

  • Automatically populated if JAVA_HOME is set

  • Otherwise, browse to the Java installation directory

  • To use the bundled Java, select: [Install Location]\EzSign\EzSignServer\java\jdk-26.0.1

  • EzSign Lib Folder

• • Defaults to the installed EzSign library folder

  • May be updated to point to another EzSign installation

• Server IP Address

  • IP address the server will bind to

  • Use * to bind to all interfaces

• Server Port

  • Port used for client requests

  • Must be unique and unused

• EzSign Control Port

  • Port used for control messages

  • Must be unique and unused

• EzSign Properties File

  • Path to the server’s .properties configuration file

  • Defaults to the test properties file

• Server Log File

  • Path to the server log file

  • Defaults to the installation log directory

• EzSign Master Password

  • Required master password for the server

  • Defaults to "password" in test configurations

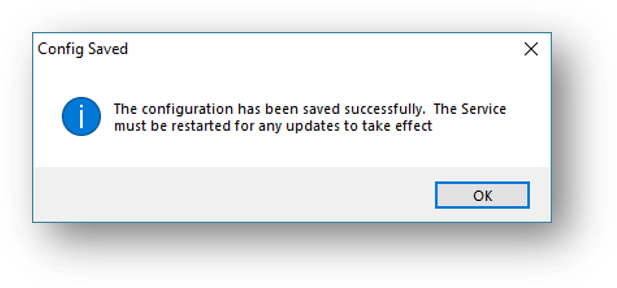

Click Apply to save changes. A message will confirm:

Additional Servers may be added, listening on different interfaces and ports if required, all of which will be managed by the Service

To edit a Server, click the Update button, make the required changes and then click Apply. Note, any updates made will not come in to effect until the Service is restarted. To cancel updating (and revert to the settings before the update button was pressed), click Cancel

If you wish to rename a Server, click the Server Rename button:

To delete a Server, select the Server to delete and click the Delete button:

Starting the Service

To start the Service, click the Start Service button:

Alternatively, start the EzSign Service directly from the Windows Services snapin

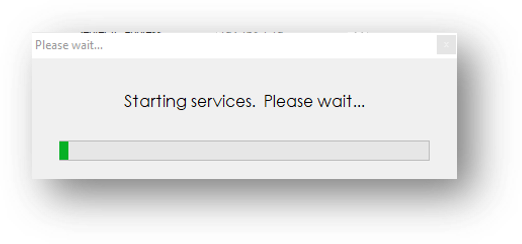

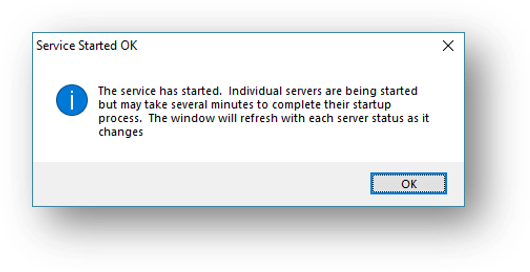

The Service will begin start up:

This can take several seconds…

Once the Service has started the status displayed in the bottom left will change from:

To

Each Server will then be started. This may take several more seconds for each Server, depending on the configuration (e.g. number of threads and channels etc). Once started, the Server status displayed in the top right of the Server details pane will change from:

To

Note, if a server takes longer to start (e.g. if it is configured with many threads or it needs to log on to HSMs) you may see the status Server Starting

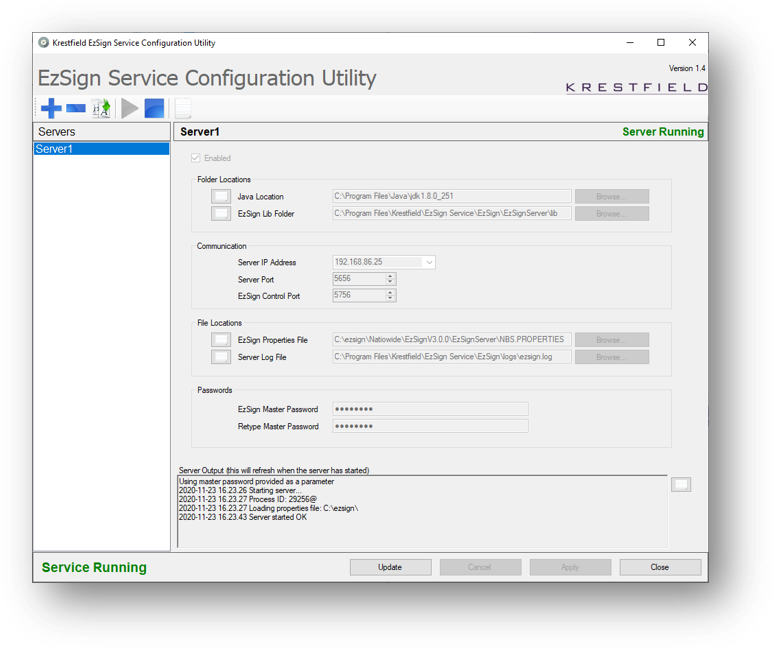

The above image shows the Service running and the Server called Server1 also running. At this point the Server will be able to accept and process requests from clients

To stop the Service and stop all Servers, click the Stop Service button:

The Configuration Utility may be closed and re-opened without affecting the running of any Servers

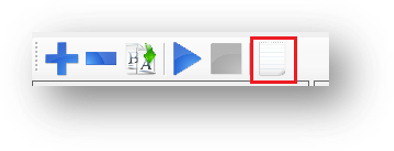

To view the Service text log, click the button:

Operation

The configuration utility simply sets the properties for each EzSign Server instance and starts or stops the EzSign Service. It also monitors the state of the Service and the state of each of the EzSign Servers (running or stopped)

Closing the configuration utility will not affect the running of the Service

When the Service is started, it loads the configuration as set from the configuration utility. The Service then attempts to start each of the EzSign Server instances in turn

Every ten seconds the Service will contact each of the EzSign Server instances and request their status. If a Server has stopped, an event will be logged. If the Server has not started at the next check (ten seconds later) the Service will attempt to restart the Server

This process will continue until the Service is stopped. During the shutdown process all EzSign Server instances will also be stopped

Note that, by default, the Service runs under the local SYSTEM account. Therefore, if the configuration utility is run under a local user account, ensure that the folders and files configured will also be accessible by the Service

Troubleshooting

A Server may take several seconds to fully start up. Until it has fully started it will not respond to the control messages and the Server status will remain at Stopped

If the status does not change to Running after a short time, this indicates a problem with the Server. The configuration may not be correct, there may be permissions issues or there may be another reason for the failure to start

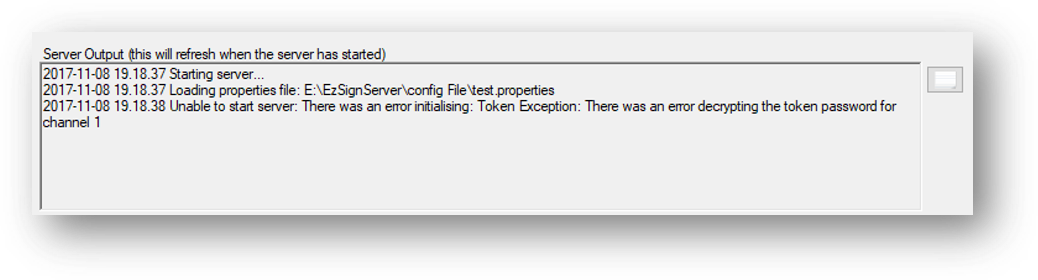

Start by examining the output window at the bottom of the dialog:

This displays the standard output that the Server would display if started from the command line. This example indicates that the Master Password has not been set correctly

Next examine the Windows Event Log. Events will be raised under Event ID: 5656 in the Application event log . Information events will indicate when the Service has started, Error events will indicate issues, for example:

The EzSign Server Server 1 listening on control port 5760 and IP address 127.0.0.1
is still not running.
Attempting a restart...Check the Server log files for more details.

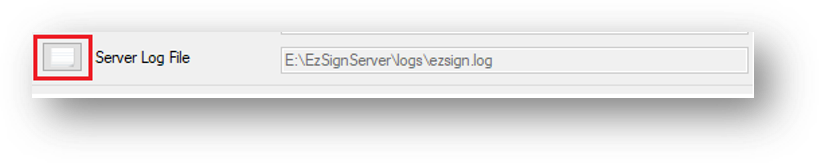

The Server Log file can be opened by clicking the button next to the Server Log File entry:

This will display the full Server log which includes all errors and events

Service details may be available in the Service Text log located here:

C:\ProgramData\Krestfield\EzSignService\Servicelog.txt

Which can also be opened by clicking the View Service Log button:

This log will indicate if a Server is failing to start and when a restart has been attempted. But the reason for the failure should be evident in the other logs

Support

EzSign documentation: https://krestfield.github.io/docs/ezsign/ezsign.html

Support contact options:

• Email: support@krestfield.com
• Web: https://www.krestfield.com/support

For Silver and Gold Support customers, the dedicated telephone support number may also be used
